geo-tools系列(二) 是用geo-tools绘制GeoJSON地图
一、绘制MapContent到图片
参考: http://docs.geotools.org/latest/userguide/library/render/gtrenderer.html
生成图片的核心代码:
public void saveImage(final MapContent map, final String file, final int imageWidth) { GTRenderer renderer = new StreamingRenderer(); renderer.setMapContent(map); Rectangle imageBounds = null; ReferencedEnvelope mapBounds = null; try { mapBounds = map.getMaxBounds(); double heightToWidth = mapBounds.getSpan(1) / mapBounds.getSpan(0); imageBounds = new Rectangle( 0, 0, imageWidth, (int) Math.round(imageWidth * heightToWidth)); } catch (Exception e) { // failed to access map layers throw new RuntimeException(e); } BufferedImage image = new BufferedImage(imageBounds.width, imageBounds.height, BufferedImage.TYPE_INT_RGB); Graphics2D gr = image.createGraphics(); gr.setPaint(Color.WHITE); gr.fill(imageBounds); try { renderer.paint(gr, imageBounds, mapBounds); File fileToSave = new File(file); ImageIO.write(image, "jpeg", fileToSave); } catch (IOException e) { throw new RuntimeException(e); } }
上述代码中涉及MapContent对象,需要文档中查看MapContent的相关内容
二、MapContent
文档地址:
http://docs.geotools.org/latest/userguide/library/render/map.html

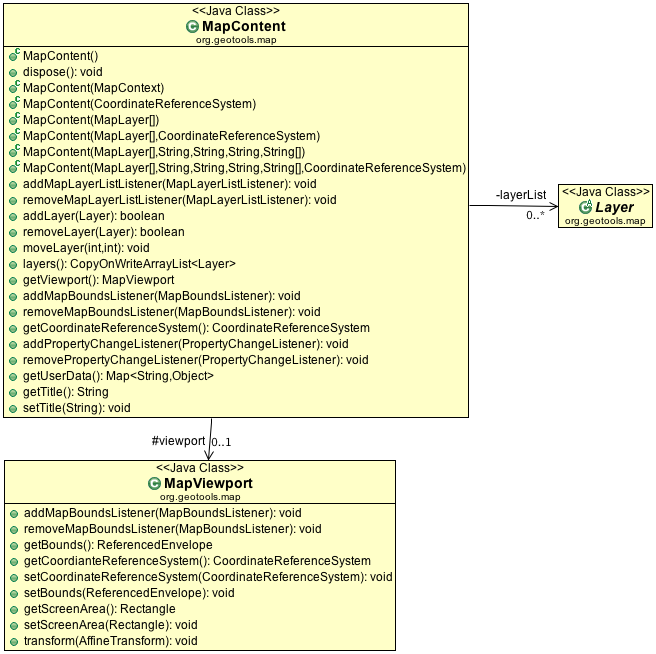

MapContent是用来捕获和渲染地图,MapContent的相关类图如下:
由类之间的关系可以看出,Layer是要绘制地图时添加的图层信息,MapViewport是对地图视点控制相关的类,现在去查看Layer
三、Layer

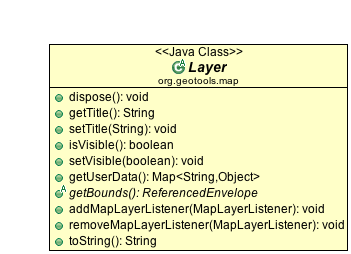

查看Layer的类图

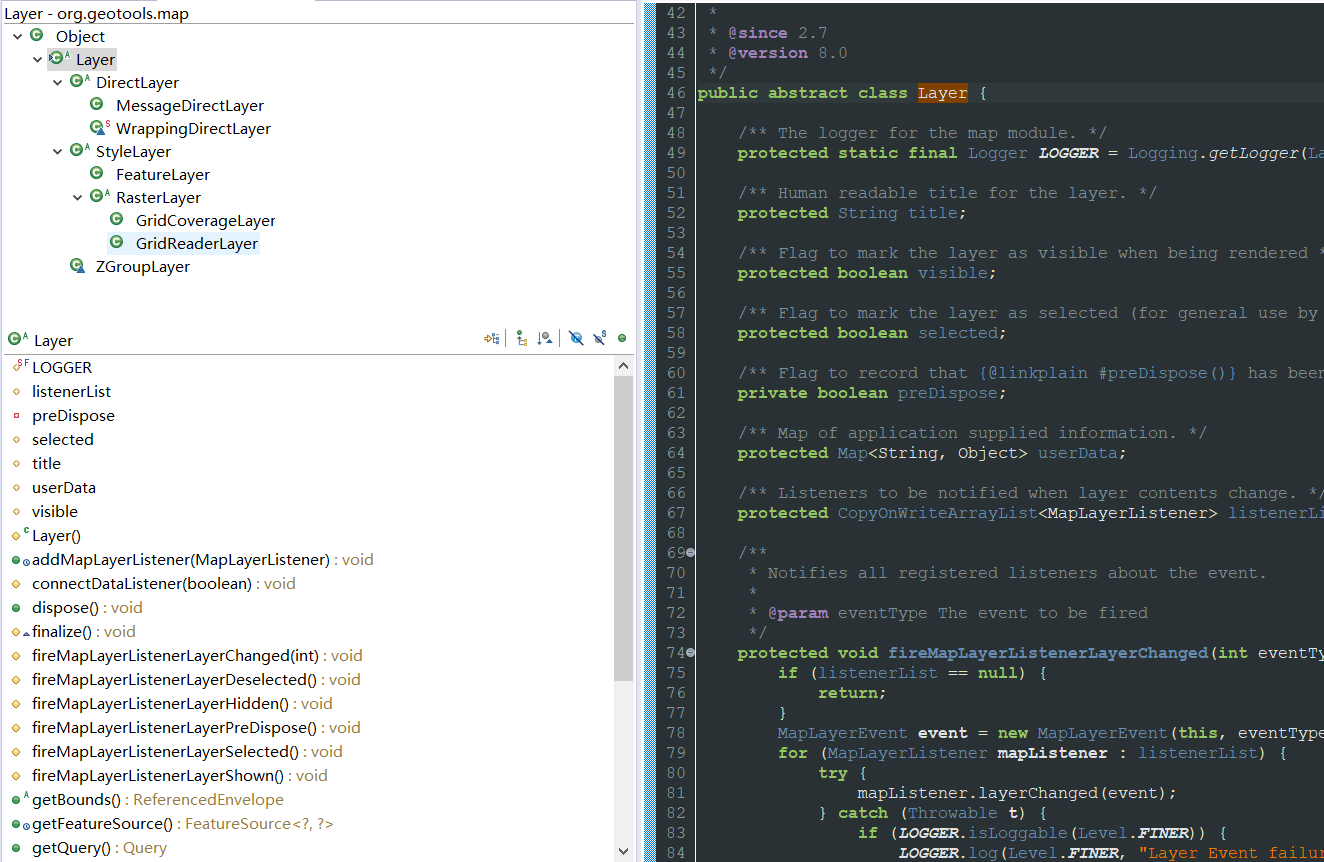

layer抽象类中的方法
综上可知需要构建一个FeatureLayer来绘制geojson中的数据
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-tovmNrew-1571199253970)(http://docs.geotools.org/latest/userguide/_images/feature_layer.PNG)]
这里使用FeatureLayer(FeatureCollection,Style)的构造器,构造FeatureCollection
四、构建FeatureLayer
4.1 GeoJSON转换为FeatureCollection
参考:
https://blog.csdn.net/aliasone/article/details/80186301
https://blog.csdn.net/aliasone/article/details/80218540
代码如下:
/** * * 绘制有孔洞的多边形 * @param geojson * @return: void * @throws */ public static void deawMultiPolygonWithHoleFromGeoJson(FeatureCollectionDTO<MultiPolygonWithHoleDTO> geojson) { String json = JSONObject.toJSONString(geojson); FeatureJSON featureJSON = new FeatureJSON(new GeometryJSON(15)); try { FeatureCollection featureCollection = featureJSON.readFeatureCollection(json); // 获取simpleFeatureType SimpleFeatureType simpleFeatureType = (SimpleFeatureType) featureCollection.getSchema(); try { // 由坐标顺序引发坐标变换 String crs = CRS.lookupIdentifier(simpleFeatureType.getCoordinateReferenceSystem(), true); try { featureCollection = new ForceCoordinateSystemFeatureResults(featureCollection, CRS.decode(crs, true)); } catch (SchemaException e) { // TODO Auto-generated catch block e.printStackTrace(); } } catch (FactoryException e) { // TODO Auto-generated catch block e.printStackTrace(); } // 创建map对象 MapContent map = new MapContent(); // 创建featurelayer // StyleFactory styleFactory = CommonFactoryFinder.getStyleFactory(); // SLDParser sldParser = new SLDParser(styleFactory, new File("d://depth.sld")); // Style style = sldParser.readXML()[0]; Style style = SLD.createLineStyle(new Color(0x1890ff), 2); FeatureLayer layer = new FeatureLayer(featureCollection, style); // 创建要输出的文件 String saveFile = "D://saveImage.jpg"; // 保存geojson到图片 MapViewport viewPoint = new MapViewport(); ReferencedEnvelope bounds = layer.getBounds(); viewPoint.setBounds(bounds); map.addLayer(layer); map.setViewport(viewPoint); saveMapToImage(map, saveFile, 1000); } catch (IOException e) { // TODO Auto-generated catch block e.printStackTrace(); } }
4.2 绘制mapContent
public static void saveMapToImage(final MapContent map, final String file, final int imageWidth) { GTRenderer renderer = new StreamingRenderer(); renderer.setMapContent(map); Rectangle imageBounds = null; ReferencedEnvelope mapBounds = null; try { mapBounds = map.getMaxBounds(); double heightToWidth = mapBounds.getSpan(1) / mapBounds.getSpan(0); imageBounds = new Rectangle(0, 0, imageWidth, (int) Math.round(imageWidth * heightToWidth)); } catch (Exception e) { // failed to access map layers throw new RuntimeException(e); } BufferedImage image = new BufferedImage(imageBounds.width, imageBounds.height, BufferedImage.TYPE_INT_RGB); Graphics2D gr = image.createGraphics(); gr.setPaint(Color.WHITE); gr.fill(imageBounds); try { renderer.paint(gr, imageBounds, mapBounds); File fileToSave = new File(file); ImageIO.write(image, "jpeg", fileToSave); } catch (IOException e) { throw new RuntimeException(e); } }
运行结果如下:
