powerdesigner使用常遇到的问题(一)
使用powerdesigner常遇到的问题总结
我要开始我的IT分享之旅喽
1、check model错误
(1)在检查模型(check model)时,出现这样的错误
Checking entity attribute …
- Entity Attribute name uniqueness
Error The following entity attribute does not have unique name:
-> Entity Attribute ‘职工.部门号’ (::职工)
-> Entity Attribute ‘部门.部门号’ (::部门) - Entity Attribute code uniqueness
Error The following entity attribute does not have unique code:
-> Entity Attribute ‘职工.部门号’ (::职工)
-> Entity Attribute ‘部门.部门号’ (::部门)
Checking identifier of entity - Identifier name uniqueness
- Identifier code uniqueness
解决办法
将检查选项里的Entity Attribute下Entity Attribute name uniqueness 和 Entity Attribute code uniqueness去掉

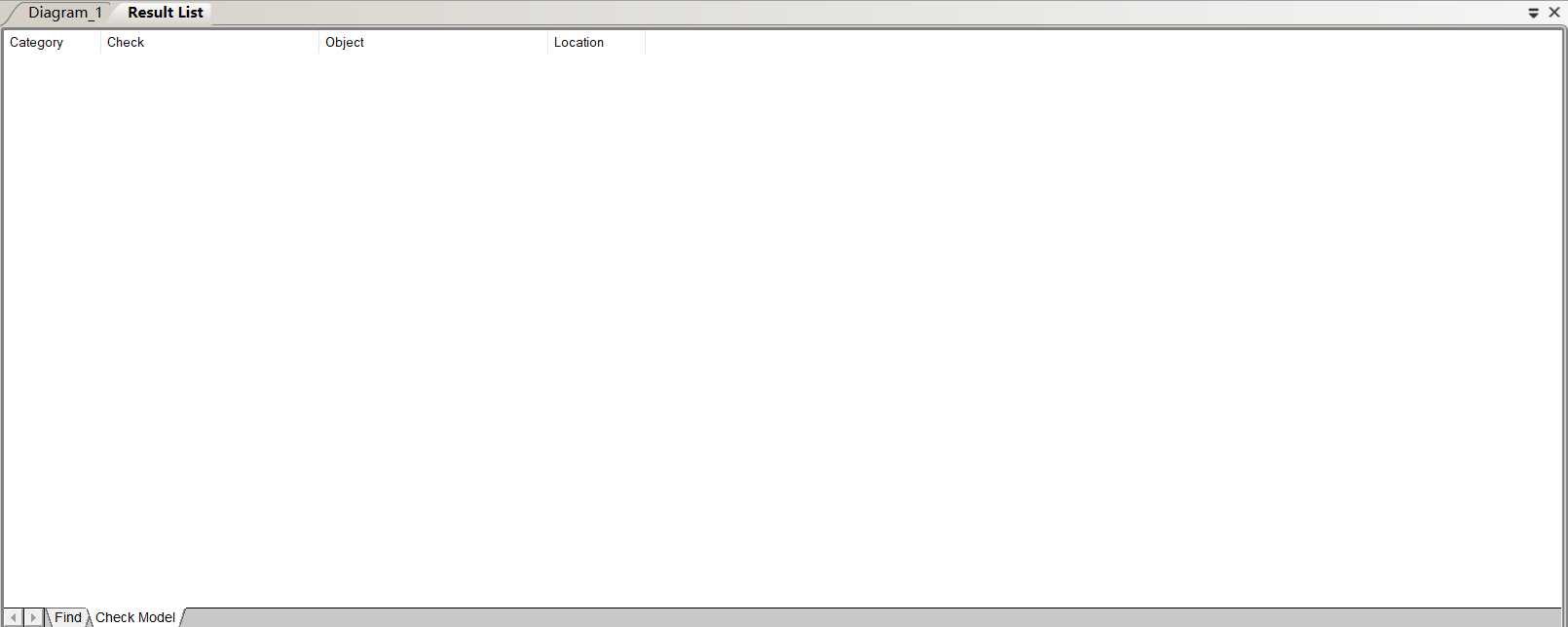

之后再检查
容易出错的地方还有,不同表的属性列name和code均相同
(2)在检查概念模型时,出现Category Check Object Location ; Data Item used multiple times ;
解决办法
找到Tools里的Model Options,看到这里
把Unique code和Allow reuse勾勾去掉即可
2、打印错误
在点击某些操作后会弹出打印错误的窗口
解决办法
右击我的电脑(Win10 的此电脑)->管理
找到我的服务
再找到Print Spooler,自动此服务即可
(注:有一点就是每次重新开机后都需要进行一次这个操作)
持续更新中。。。
